Description

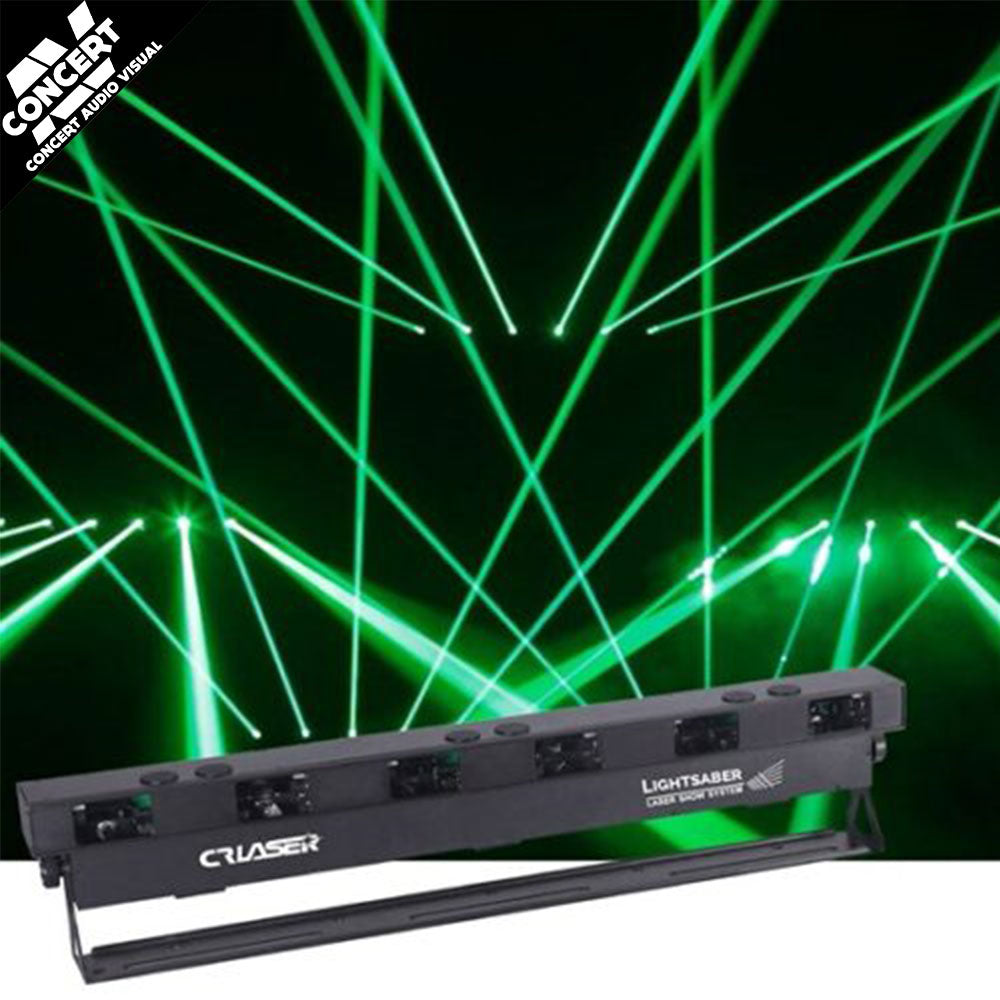

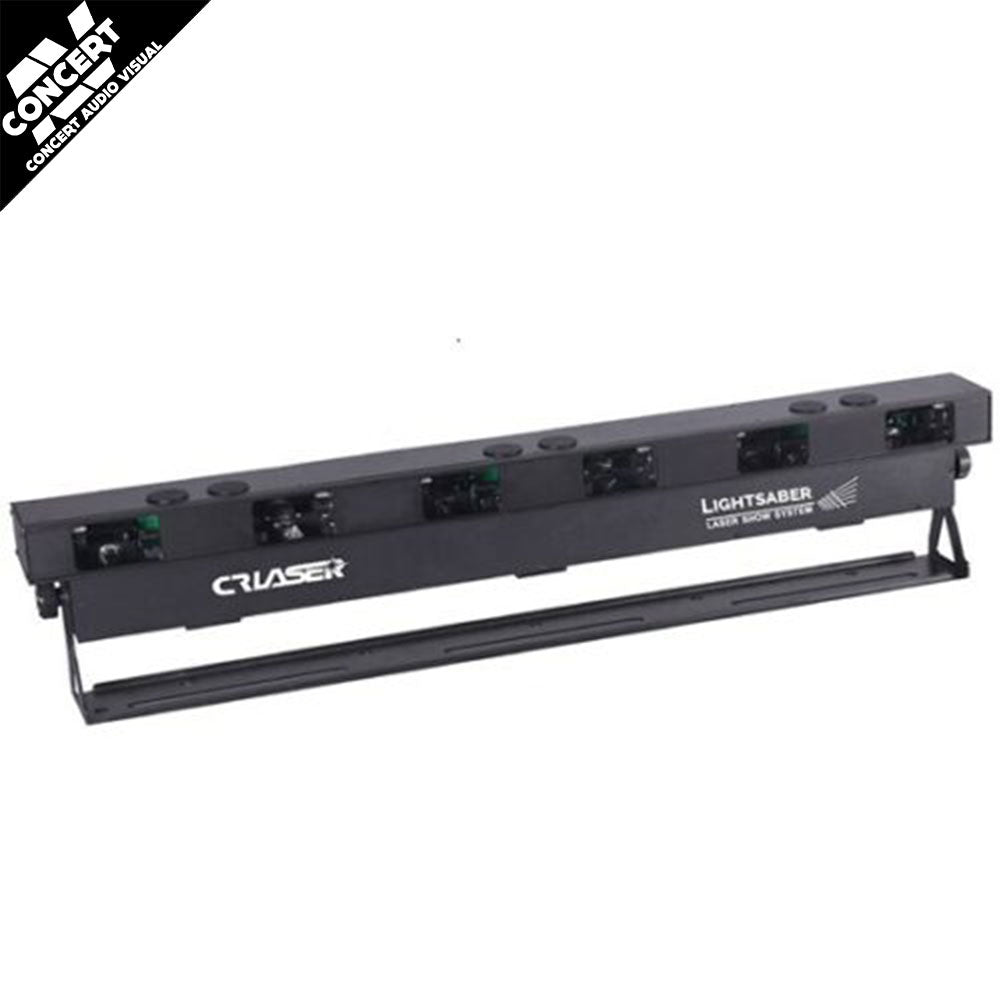

CR Laser Light Saber 6 head Laser Bar
The Lightsaber LM-6 RGB is a powerful laser bar with six individually controllable 1W RGB full-colour fat beam lasers for indoor venues. The six fat beam lasers create a noticeably thicker laser beam than usual. By using analogue dimming of each of the individual red, green, and blue laser units, the full spectrum of colours can be created with each individual beam.
The Lightsaber LM-6 RGB offers auto, colour, master/slave, and DMX-512 control modes. It has 32 internal patterns available, which can be selected through DMX. Intensity, zoom, and 3-axis rotation effects offer many additional effect possibilities.
Please note that an optionally available remote interlock may be mandatory for legal operation. A remote interlock test connector is included for service purposes.
Features
- Six 1000 mW Full-Colour Fat Beam Lasers
- Six individually controllable beams
- DMX, Master/slave, Colour, and Auto modes
- 32 internal patterns
- Intensity, zoom, and 3-axis rotation
Technical Parameter：
- Laser unit: Red: 200 mW / 638 nm, green: 200 mW / 520 nm, Blue: 600 mW / 450 nm
- Laser class: 3B (please note the applicable local laser safety regulations)
- Laser Modulation: Analog
- Scanner speed: 20 K
- Fat Beam diameter: 18 mm
- Beam divergence: 1.5 mrad,
- Deflection angle: 1-36degree
- Laser safety according to EN60825-1 2007
- Control: ILDA, DMX-512, infrared - remote (included) or via the specially designed keyboard (included)
- DMX Channels: 7, 9, 12, 36, 48, 54, 66
- Power supply: 100-240 V, 50/60 Hz
- Power consumption: max 120W
- Housing: Aluminium
- IP Rating: IP20
- Fuse: 250V / 1.6A
- Dimensions (W x L x H): 201 x 200 x 1000 mm
- Weight: 10 kg
