Description

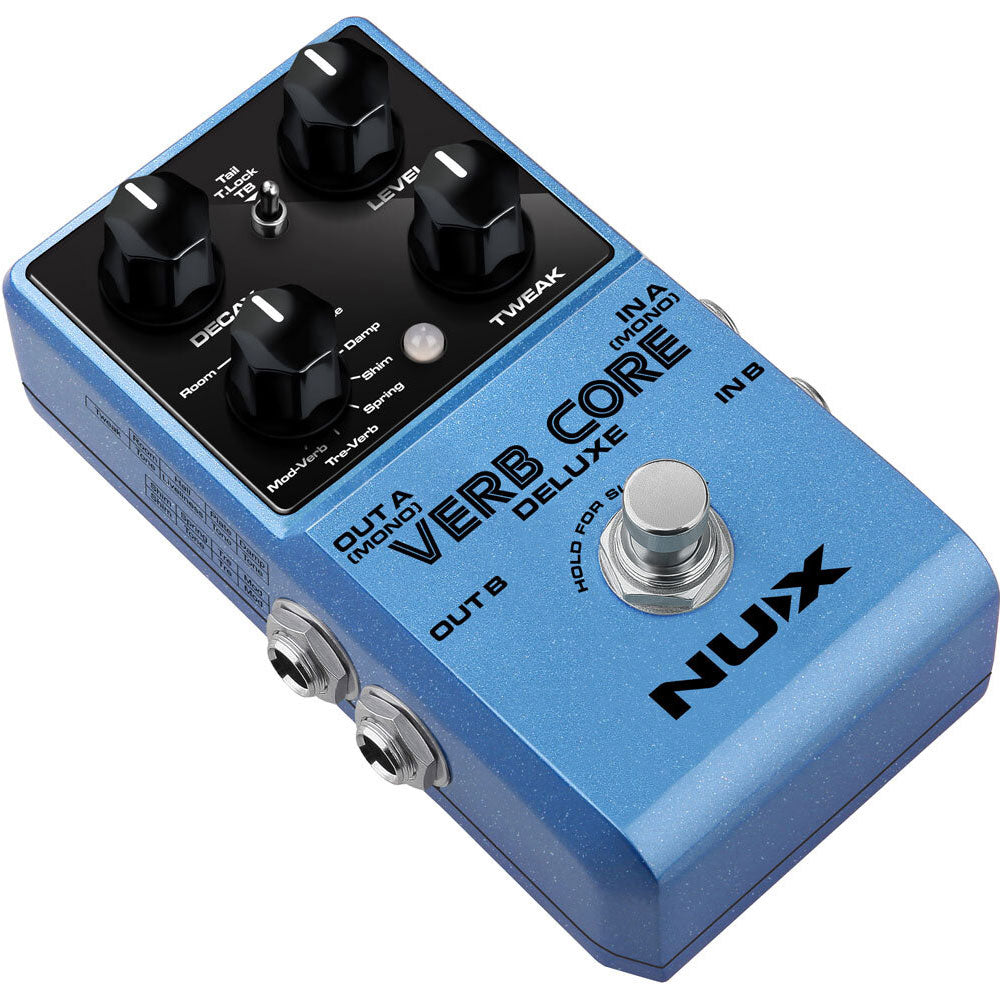

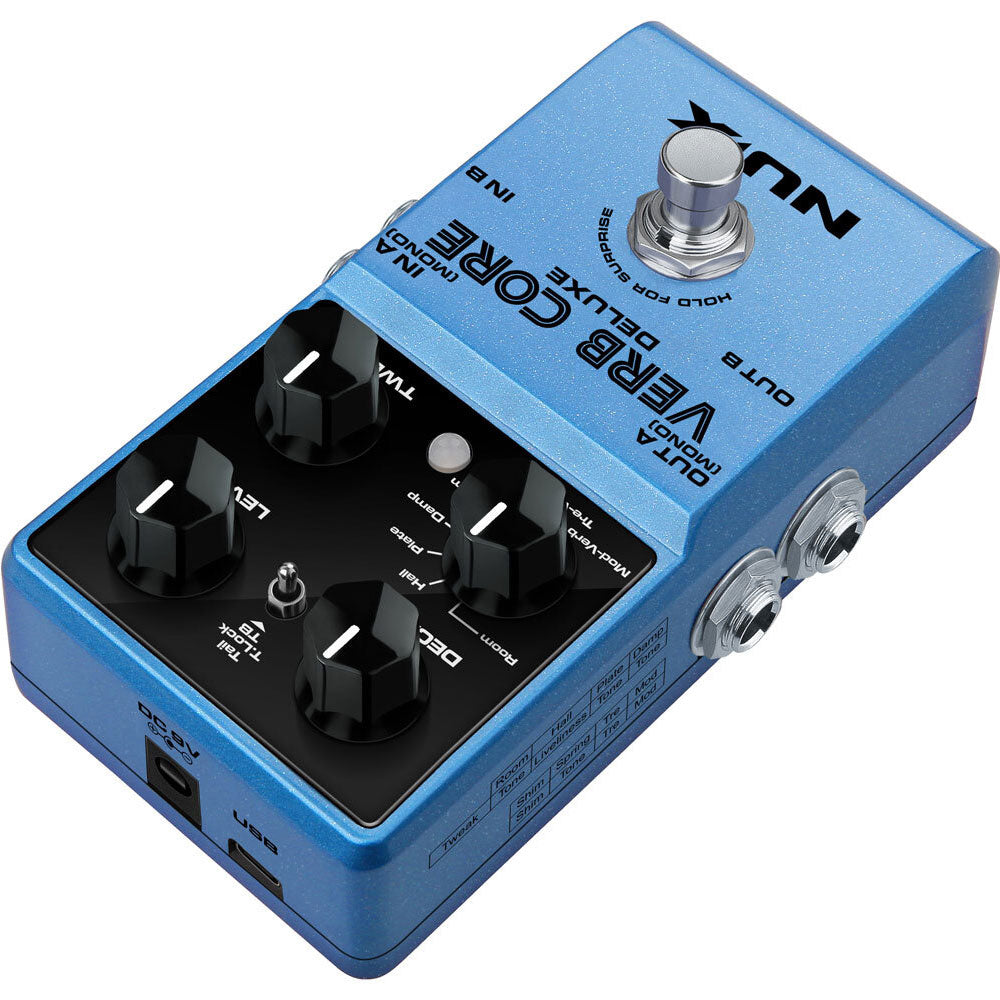

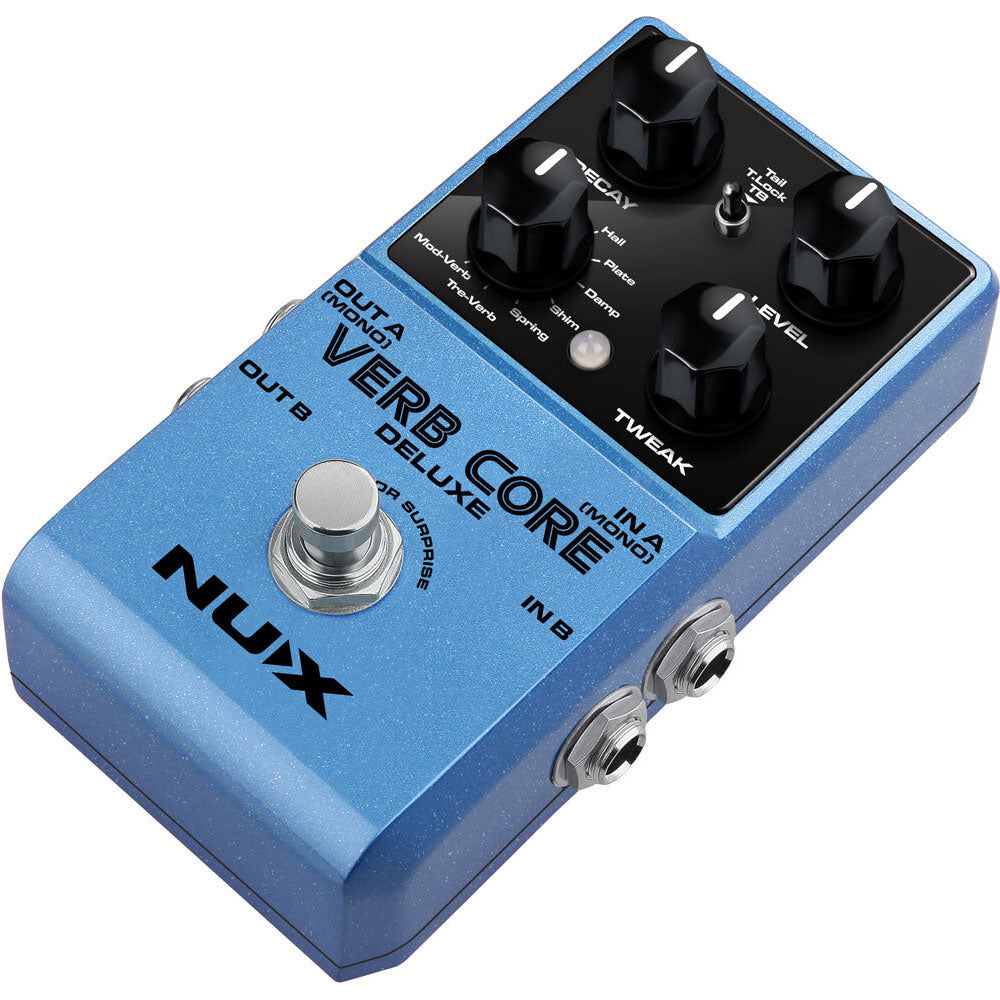

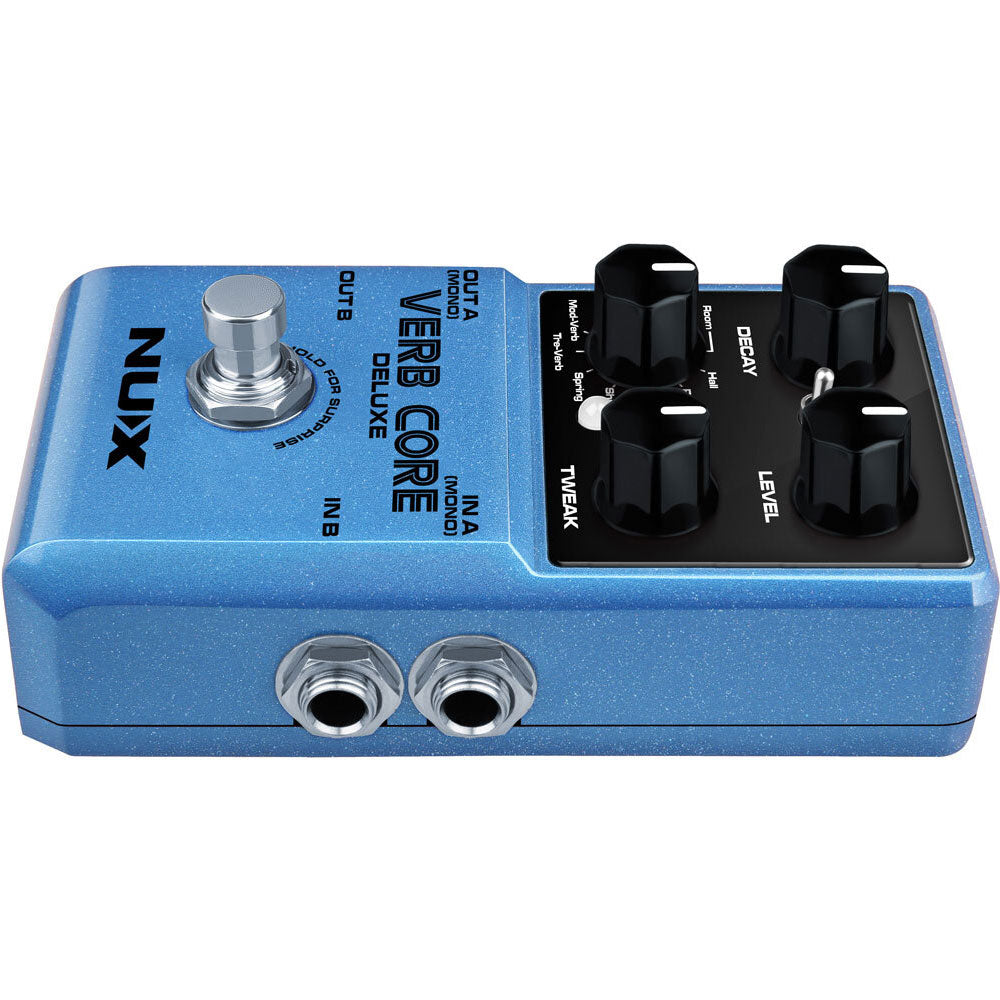

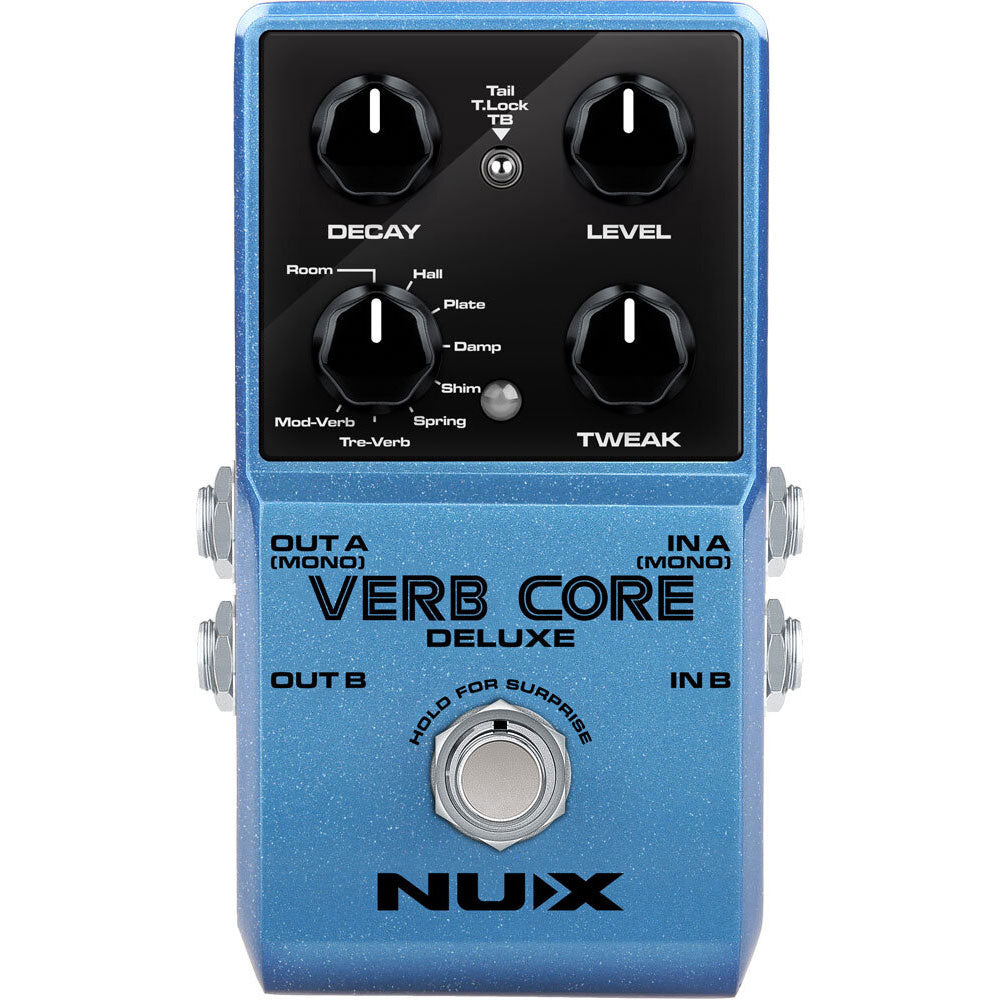

NU-X Core Series Verb Core Deluxe Reverb Pedal
Shape your tone with advanced routing. Modify your tone with Modulation.
The NUX MOD CORE DELUXE MKII is a modulation pedal with 8 different types including ST.CH (Stereo Chorus), CE-1, SCF CHO, SCF FLG, SCF P.M., U-VIBE CHO, U-VIBE VIB and PH-100. You can switch the mod types by way of the Type rotary switch.
This pedal offers advanced signal routing with the included Send and Return. Easily split the mono signal to create customized effect loops! Additionally, you can parallel the 2 signals, and use the Tweak knob in Alt mode to blend the signals. Use the 3-way toggle switch to the desired position, and you are good to go. Keep reading below for more signal routing ideas
FEATURES
- 8 reverb types in a compact enclosure.
- Room, Hall, Plate, Damp, Shim, Spring, Tre-Verb, Mod-Verb.
- Freeze function.
- True-bypass or Buffer-bypass(Tails).
- Supports Stereo.
- Kill Dry.
- Low power consumption. (less than 120mA)
- Analog dry signal for low noise and zero latency.
SPECIFICATIONS
- Input Impedance: 1M ohms
- Output Impedance: 1K
- Dynamic Range: 104 dB
- DSP Processing: 48KHz / 32-bit
- A/D D/A Sampling Rate: 48KHz / 24-bit
- Power: 9V DC (Negative tip, Optional ACD-006A adapter)
- Current Draw: less than 120mA
- Dimensions (L x W x H): 122mm x 72mm x 47mm
- Weight: 270g
