SVX Wireless Systems deliver the quality of Shure wireless performance for virtually any application. From spoken word to fitness instruction, presentations to karaoke, SVX Wireless will provide years of reliable use. No other wireless system combines the same level of quality and ease of setup in a single package. Shure SVX is available in Single or Dual Channel options.

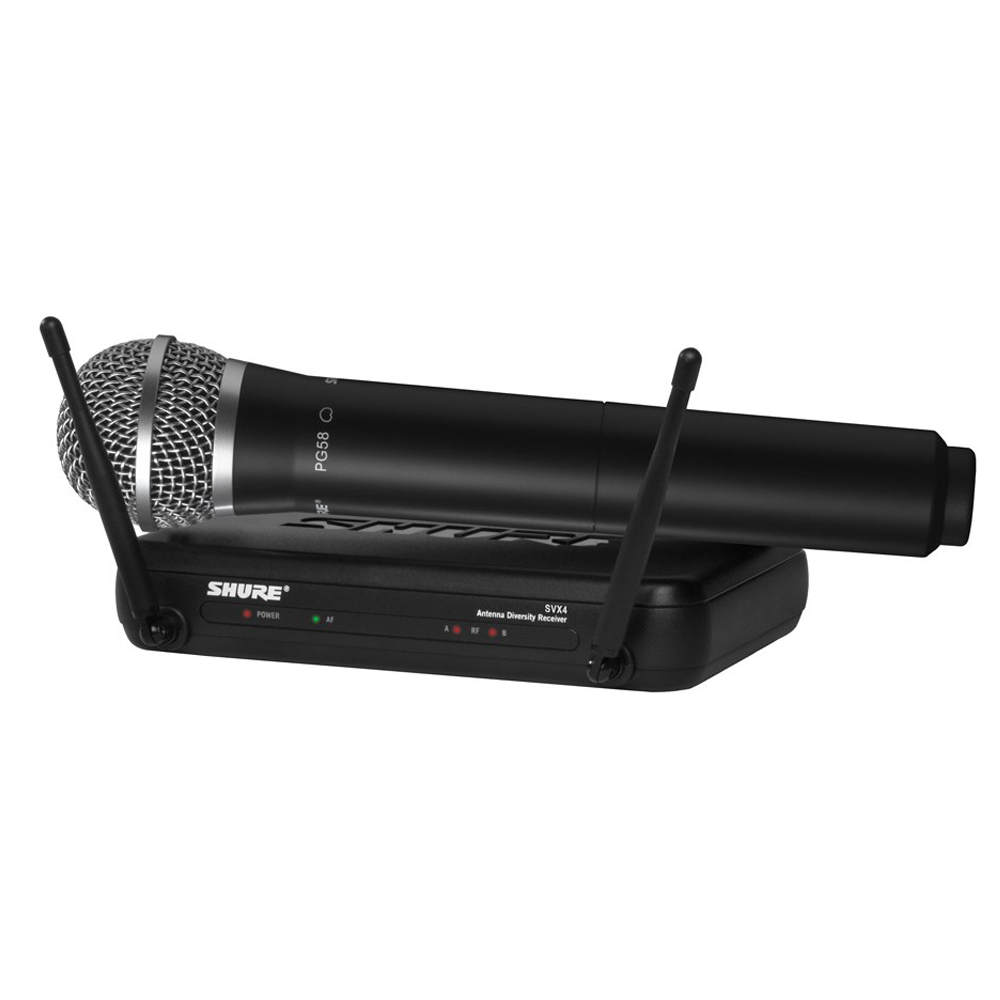

Kit includes SVX4 Diversity Receiver, and SVX2 Handheld Microphone Transmitter with PG58 Microphone.

PG58 with SVX2 Wireless Handheld Transmitter

The SVX Wireless Handheld Transmitter comes with a PG58 microphone option.

Features

• RF Level Switch between 1mW and 10mW
• 2 “AA” batteries
• Up to 10 hours of battery life
• Bottom on/off switch design
• Anti-rolling ring on grille for PG28
• Power and battery status LED
• 6 color rings for microphone identification

Tech Specs

• Transmitter Type: Handheld
• Dimensions: 254 mm X 51 mm diameter
• RF Output Power: 1
• RF Output Power: 1 mw
• Battery, endurance: 10 h
• Weight: 270 g
Further specs:
- Audio Input Level: –20 dBV maximum
- Input Impedance: 22 kΩ
- RF Output (dependent on applicable country regulations):
- HI power mode: 10 mW maximum
- LO power mode: 1 mW maximum
- Weight: 270 g (10.2 oz.)(without batteries)
- Housing: Molded ABS
- Power Requirements: 2 “AA” size alkaline or rechargeable batteries

SVX4 Diversity Receiver

Single channel receiver for use with Shure SVX Wireless systems.

Features

• Up to 8 selectable channels
• Up to 4 compatible systems*
• Antenna Switching Diversity
• Adjustable Squelch Level
• Mic / Line Switch
• 2 Audio Output:
- 1/4" Connector
- XLR Connector

Tech Specs

• Power Supply: 12-18V
• Maximum Output Level: -19 dBV (XLR), -5 dBV (1/4”) (ref. +/-33kHz deviation with 1 kHz tone) mW
